Factory Free sample Bottle Printer - Nano 7 A2 UV Flatbed Printer – Rainbow

1. Double Hiwin linear guideways

Nano 7 has 2pcs of Hiwin linear guideways on its X-axis and another 2pcs on Y-axis.(Most other A2 uv printers has only 1pcs of guideway on X-axis).
This brings better stability in carriage and vacuum table movement, better printing accuracy, and longer machine lifespan.

2. 4pcs of thick ball screws

Nano 7 A2 UV printer has 4pcs thick ball screws on Z-axis, making the up-and-down movement of the platform smooth and fast, which also making it possible to have a stunning 24cm(9.4in) print height(good for printing suitcases).
The 4pcs of ball screw also makes sure that the platform is stable and level, which helps secure the printing resolution.

3. Thick aluminum suction table

Full aluminum suction platform has equipped with strong air fans, the surface is specially treated to be anti-corrosion and anti-scratch.
The suction table plug is at the back of the printer, you can also find the on/off switch in the front panel.

4. German Igus cable carrier

Imported from German, the cable carrier runs smoothly and quietly, it protects the ink tubes and cables during the printer carriage movement, and it has long lifespan.

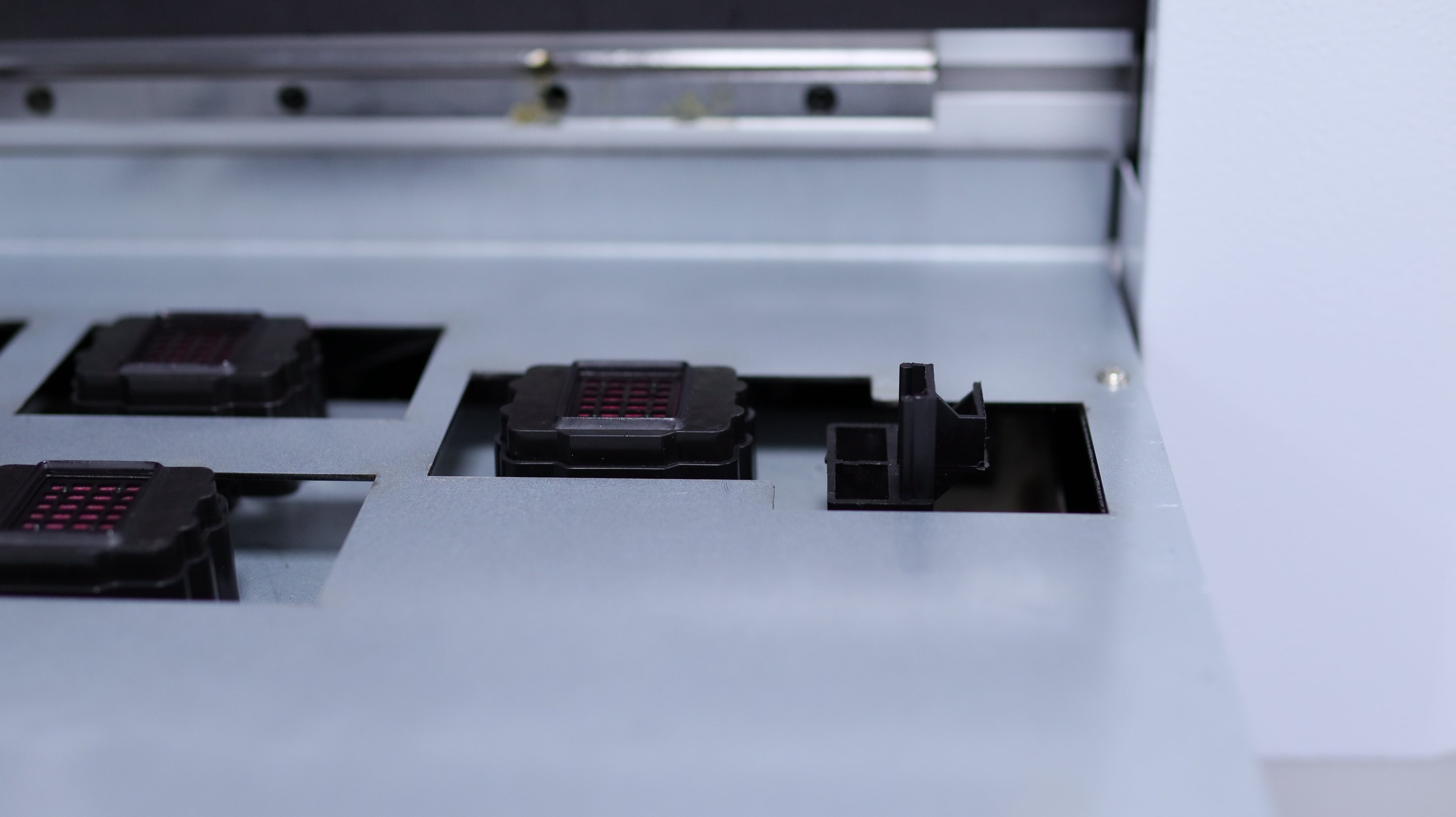

5. Printhead lock sliding lever

The newly invented device is a mechanical structure for locking the printheads and sealing them tightly from drying and clogging.
When the carriage returns to the cap station, it hits the lever which pulls up the printhead caps. By the time the carriage brings the lever to the right limit, the printheads will also be fully sealed by the caps.

6. Low Ink alarm system

8 lights for 8 kinds of ink make sure you will notice the ink shortage when it does, the ink level sensor is placed inside the bottle so it can detect accurately.

7. 6 colors+White+Varnish

CMYKLcLm+W+V ink system now has Lc and Lm 2 extra colors to improve the color accuracy, making the printed result even sharper.

8. Front panel

The front panel has the basic control functions, like on/off switch, making the platform up and down, moving the carriage right and left and doing test print, etc.

9. Carraige plate temperature controler

It's a compact device inside the printer carriage that serves to 1)heat the metal carriage bottom plate and 2)display the real time temperature of the carriage bottom plate.

10. Waste ink bottle

The waste ink bottle is simi-transparent, so you can see the liquid level of the waste ink and clean it when necessary.

11. UV LED lamp power knobs

There are two UV LED lamps in Nano 7 for color+white and varnish respectively. Thus we designed two UV lamp wattage controlers. With them, you can adjust the wattage of the lamps according to your jobs' requirement.
For example, if you need to print heat-sensitive materials like film A&B(for stickers), you might want to turn down the lamp wattage to prevent it from altering its shape because of the heat.

12. Aluminum Rotary device

Nano 7 also supports rotary printing with the help of the rotary device. It can handle three kinds of rotary products: the bottle with a handle like mug, the bottle without a handle like normal water bottle, and the tapered bottle like tumbler(need an extra small gadget).
It's convenient to install and uninstall the device, just need to put it on the platform and the magnet will fix the device in place. Then we need to switch the print mode to rotary and we'd be able to do the print just as usual.
