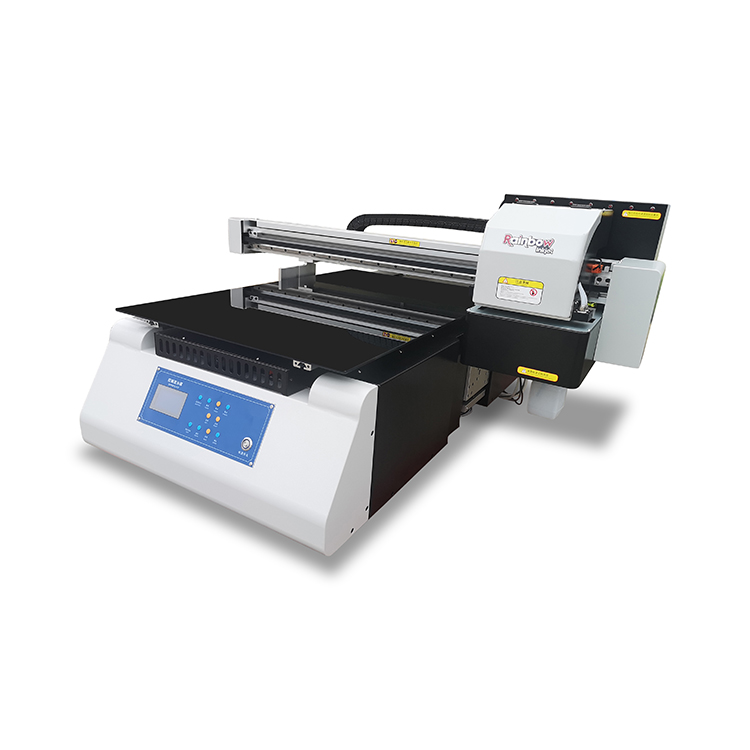

Fast delivery A2 Dtg Flatbed Printer - Nano 9 A1 6090 UV Printer – Rainbow
Fast delivery A2 Dtg Flatbed Printer - Nano 9 A1 6090 UV Printer – Rainbow Detail:
|
Specs of Rainbow Nano 9 UV flatbed printer |
|||
| Name | Rainbow Nano9 A1 6090 digital UV printer | Working Environment | 10 ~ 35 ℃ HR40-60% |
| Machine Type | Automatic Flatbed UV digital printer | Printer Head | Three Printer Heads |
| Features | · The UV light source can be adjusted | RIP Software | Maintop 6.0 or PhotoPrint DX 12 |
| · Auto height measurement | Operation System | All Microsoft Windows system | |
| . Power auto flash clean | Interface | USB2.0/3.0 Port | |
| ·Print on most material directly | Languages | English/Chinese | |
| · Ideal for industrial bulk production with high printing speed | Ink Type | UV LED curing ink | |
| · Finished products is Water proof, UV proof, and Scratch proof | Ink System | CISS Built Inside With Ink Bottle | |
| · Finished product is suitable for outdoor use | Ink Supply | 500ml/Bottle | |
| · Max printing Size: 60*90cm | Height Adjustment | Automatic with Sensor. | |
| · With cap slider for auto cap lock to avoid printhead clog | Driving Power | 110 V/ 220 V. | |
| · The printing machine can print white color and 3D emboss effect | Power Consumption | 1000W | |
| Materials to Print | · Metal, Plastic, glass, wood,Acrylic, Ceramics,PVC,Steel board,Paper, | Media Feeding System | Auto/Manual |
| ·TPU, Leather, Canvas, etc | Ink Consumption | 9-15ml/SQM. | |
| UV Curing System | Water Cooling | Print Quality | 720×720dpi/720*1080DPI（6/8/12/16pass） |
| Printing Method | Drop-on-demand Piezo Electric Inkjet | Machine Dimension | 113*140*72CM |
| Printing Direction | Smart Bi-directional Printing Mode | Packing Size | 153*145*85CM |
| Printing Speed | About 5 minutes for 720*720dpi, 600mm*900mm size | Machine Net Weight | 135kg |
| Max. Print Gap | 16cm | Gross.Weight | 185kg |
| Power Requirement | 50/60HZ 220V(±10%)<5A | Packing Way | Wooden Case |
Nano9 6090 uv printer has three print heads but it uses main board for 4pcs print heads
Nano9 uses 4 pieces head main board but we install it with three heads--this make printer works more stable because we use higher configuration main board.
Three pieces Epson DX8 print heads makes the printing speed very quick, and all colors CMYKWV can be printed.
Fine machining metal frame prolongs the lifespan of Nano9.
Nano9 uses thick mold opening and customization frame which helps to improve the printing accuracy on any materials.
Transparent waste ink tank + clear display and control button.
Nano9 uses transparent waste ink tank, we can check if it’s full or not so that we can clean it.
Large English/Chinese control button helps easy control of the machine
Vanish+3D embossed effect.
Nano9 can print with 3D texture embossing effect and vanish glossy spot uv effect.
360 degree rotary bottles printing + mug with handle/ear printing..
Nano9 support two kinds of rotary devices for any bottles printing, the acceptable diameter is from 1cm to 12cm, all tiny cylinder can be printed.
Q1:What materials can UV printer print?
A:UV printer can print almost all kinds materials, such as phone case, leather, wood,plastic, acrylic, pen, golf ball, metal, ceramic, glass, textile and fabrics etc.
Q2:Can UV printer print embossing 3D effect?
A:Yes, it can print embossing 3D effect, contact us for more information and printing videos
Q3:Can A3 uv flatbed printer do rotary bottle and mug printing?
A:Yes, both bottle and mug with handle can be printed with the help of rotary printing device.
Q4:Does printing materials must be sprayed a pre-coating?
A:Some material need pre-coating, such as metal, glass, acrylic for make the color anti-scratch.
Q5:How can we start to use the printer?
A:We will send the detailed manual and teaching videos with the package of the printer before use the machine, please read the manual and watch the teaching video and operate strictly as the instructions, and if any question unclarified, our technical support online by teamviewer and video call will be help.
Q6:What about the warranty?
A:We have 13 months warranty and lifelong technical support, not include consumables like print head and ink
dampers.
Q7:What's the printing cost?
A:Usually,1 square meter need cost about $1 printing cost with our good quality ink.
Q8:Where can I buy the spare parts and inks?
A:All spare parts and ink will be available from us during the whole lifespan of printer, or you can buy at local.
Q9:What about maintenance of the printer?
A:The printer has auto-cleaning and auto keep wet system, each time before power off machine, please do a normal cleaning so that keep print head wet. If you don't use the printer more than 1 week, it’s better to power on machine 3 days later to do a test and auto clean.
