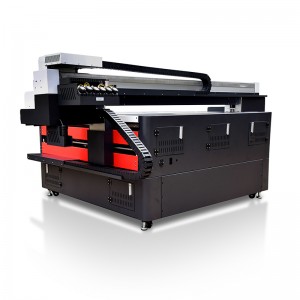

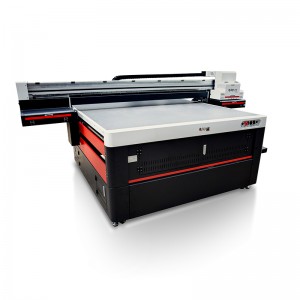

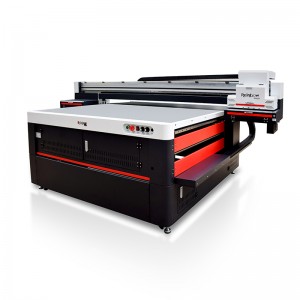

RB-1610 A0 Large Size Industrial UV Flatbed Printer

Short Description:

RB-1610 A0 UV flatbed printer provides an affordable option with a large printing size. With a max printing size of 62.9″ in width and 39.3” in length, it can directly print on metal, wood, pvc, plastic, glass, crystal, stone and rotary products. Varnish, matte, reverse print, fluorescence, bronzing effect are all supported. Besides, RB-1016 support direct to film printing and transfering to any materials, which makes it possible to customize curved and irregularly-shaped products. More importantly, RB-1610 equips with vaccumsuction table for printing soft materials like leather, film, soft pvc, making it much easier for positioning and non-tape printing. This model has helped many customers and are becoming more popular because of it’s industrial look, interior design and color performance.

  • Print size: 62.9*39.3″
  • Print height: substrate 10″ /rotary 3″
  • Print resolution: 720dpi-2880dpi (6-16passes)
  • UV ink: Eco type for cmyk plus white,vanish, 6 level scratch-proof
  • Applications: For custom phone cases, metal, tile, slate, wood, glass, plastic, pvc decor, special paper, canvas art, leather, acrylic, bamboo, soft materials and more


Product Overview

Specifications

Videos

Customer Feedback

Product Tags

UV--Nano-Printer-catalog
INKJET PRINTER
Model Name
RB-1610 A0 UV flatbed printer
Print size
62.9''x39.3''
Printh height
10''
Printhead
2-3pcs Epson DX10/XP600/I3200
Color
CMYK+W+V
Resolution
720-2880dpi
Application
phone case, pen, card, wood, goofball, metal, glass, acrylic, PVC, canvas, ceramic, mug, bottle, cylinder, leather, etc.

1. Thick Hiwin linear guideways

RB-1610 has 35mm thick Hiwin linear guideways on its X-axis, 2 pcs on its Y-axis, and 4 pcs on its Z-axis, making it a total of 7 pcs of industrial-level linear guideways.

This brings better stability in printer running, thus better printing accuracy, and longer machine lifespan.

2. German Igus cable carrier

Imported from German, the cable carrier runs smoothly and quietly, it protects the ink tubes and cables during the printer carriage movement, and it has a long lifespan.

a0 uv printer (2)

3. Thick aluminum suction table

RB-1610 equips with a thick aluminum suction table for printing both soft materials and substrates like acrylic.
With more than 20 adjustable support screws, the table can be adjusted to a perfect levelness for high quality printing.
The surface of the table is specially treated to be scratch-proof for high durability.

PTFE vacuum table with 20 set points

4. Industrial-level ball screw

RB-1610 has 2 pcs of ball screws on its Y-axis to assist the carriage beam's forward-backward movement, making sure of its stability and smoothness.
It also has another 2pcs of ball screws on the Z-axis to support the stability of 25cm print height.

ball-screw-on-Y-axis

5. Anti-static carriage

RB-1610 has a solid carriage that is adjustable in height based on the carriage beam.
The carriage plate is a CNC milling part for high integration and structural stability.
The carriage also contains an anti-static device which when turned on, will get rid of the static generated between the heads and the table. (the static will deviate the path of the ink droplets, blurring the print)

6. Bulk ink system

RB-1610 has a bulk ink CISS system with a volume of 750ml, suitable for a long period of printing. The low ink level alert device is also installed to bring more convenience to operation. The white ink stirring device is constantly on to prevent white ink from forming particles.

ink-bottles

7. Aluminum rotary devices for mug and bottle

RB-1610 supports two kinds of rotary devices, one for bottles only, and the other for mugs and bottles alike. Both devices are made of aluminum and equipped with an independent motor to make sure of printing precision.

One Machine, Two Solutions

①UV Direct Printing Solution

UV DIRECT PRINTING PROCESS

Direct Printing Samples

phone case uv printer- (7)

Phone Case

glass

Glass award

plastic tube

Plastic tubes

acrylic-UV-print-1

Acrylic sheet

coated-cap_压缩后

Coated metal cap

metal-pedalbox-2

Powder coated metal pedal box

pen-printed

Plastic pens

IMG_2948

Leather

PVC-cardzeropoint76mm

Business/gift card

pocker chip

Poker chips

1 (3)

Cylinder

musicbox

Wood music box

②UV Direct to Film Transfer Solution

UV DTF

UV DTF Samples

1679900253032

Printed film(ready to use)

can

Frosted glass can

flask

Cylinder

uv dtf sticker

Printed film(ready to use)

1679889016214

Paper can

1679900006286

Printed film(ready to use)

helmet

Helmet

未标题-1

Balloon

杯子 (1)

Mug

helmet

Helmet

2 (6)

Plastic tube

1 (5)

Plastic tube

Optional items

uv curing ink hard soft

UV curing hard ink(soft ink available)

uv dtf b film

UV DTF B film(one set come with A film)

A2-pen-pallet-2

Pen printing tray

coating brush

Coating brush

cleaner

Cleaner

laminating machine

Laminating machine

golfball tray

Golfball printing tray

coating cluster-2

Coatings(metal, acrylic, PP, glass, ceramic)

Glossy-varnish

Gloss(varnish)

tx800 printhead

Print head TX800(I3200 optional)

phone case tray

Phone case printing tray

spare parts package-1

Spare parts package

Sample Service

We offer a sample printing service, meaning we can print a sample for you, record a video in which you can see the whole printing process, and capture high-resolution images to showcase the sample details, and will be done in 1-2 workdays. If this interests you, please submit an inquiry, and if possible, provide the following information:

  1. Design(s): Feel free to send us your own designs or allow us to utilize our in-house designs.
  2. Material(s): You may send the item you wish to have printed or inform us of the desired product for printing.
  3. Printing specifications (optional): If you have unique printing requirements or seek a particular printing result, don't hesitate to share your preferences. In this instance, it's advisable to provide your own design for improved clarity regarding your expectations.

Note: If you require the sample to be mailed, you will be responsible for postage fees.

FAQ:



Q1:What materials can UV printer print?

A:UV printer can print almost all kinds materials, such as phone case, leather, wood,plastic, acrylic, pen, golf ball, metal, ceramic, glass, textile and fabrics etc.

Q2:Can UV printer print embossing 3D effect?
A:Yes, it can print embossing 3D effect, contact us for more information and printing videos

Q3:Can A0 uv flatbed printer do rotary bottle and mug printing?

A:Yes, both bottle and mug with handle can be printed with the help of rotary printing device.
Q4:Does printing materials must be sprayed a pre-coating?

A:Some material need pre-coating, such as metal, glass, acrylic for make the color anti-scratch.

Q5:How can we start to use the printer?

A:We will send the detailed manual and teaching videos with the package of the printer before use the machine, please read the manual and watch the teaching video and operate strictly as the instructions, and if any question unclarified, our technical support online by teamviewer and video call will be help.

Q6:What about the warranty?

A:We have 13 months warranty and lifelong technical support, not include consumables like print head and ink
dampers.

Q7:What's the printing cost?

A:Usually,1 square meter need cost about $1 printing cost with our good quality ink.
Q8:Where can I buy the spare parts and inks?

A:All spare parts and ink will be available from us during the whole lifespan of printer, or you can buy at local.

Q9:What about maintenance of the printer?

A:The printer has auto-cleaning and auto keep wet system, each time before power off machine, please do a normal cleaning so that keep print head wet. If you don't use the printer more than 1 week, it’s better to power on machine 3 days later to do a test and auto clean.


  • Previous:
  • Next:

  • Name RB-1610
    Printhead Three DX8/4720 print heads
    Resolution 720*720dpi~720*2880dpi
    Ink Type UV curable hard/soft ink
    Package size 750ml per bottle
    Ink supply system CISS(750ml ink tank)
    Consumption 9-15ml/sqm
    Ink stirring system Available
    Maximum printable area(W*D*H) Horizontal 100*160cm(39.3*62.9″;A1)
    Vertical substrate 25cm(10inches) /rotary 8cm(3inches)
    Media Type  photographic paper, film, cloth, plastic, pvc, acrylic, glass, ceramic, metal, wood, leather, etc.
    Weight ≤40kg
    Media (object) holding method Vacuum table
    Software RIP Maintop6.1
    Control Wellprint
    format .tif/.jpg/.bmp/.gif/.tga/.psd/.psb/.ps/.eps/.pdf/.dcs/.ai/.eps/.svg
    System Windows XP/Win7/Win8/win10
    Interface USB 3.0
    Language English/Chinese
    Power requirement 50/60HZ 1000-1500W
    Consumption 1600w
    Dimension Assembled 2.8*1.66*1.38M
    Package size 2.92*1.82*1.22M
    Weight Net 530/ Gross 630 kg
