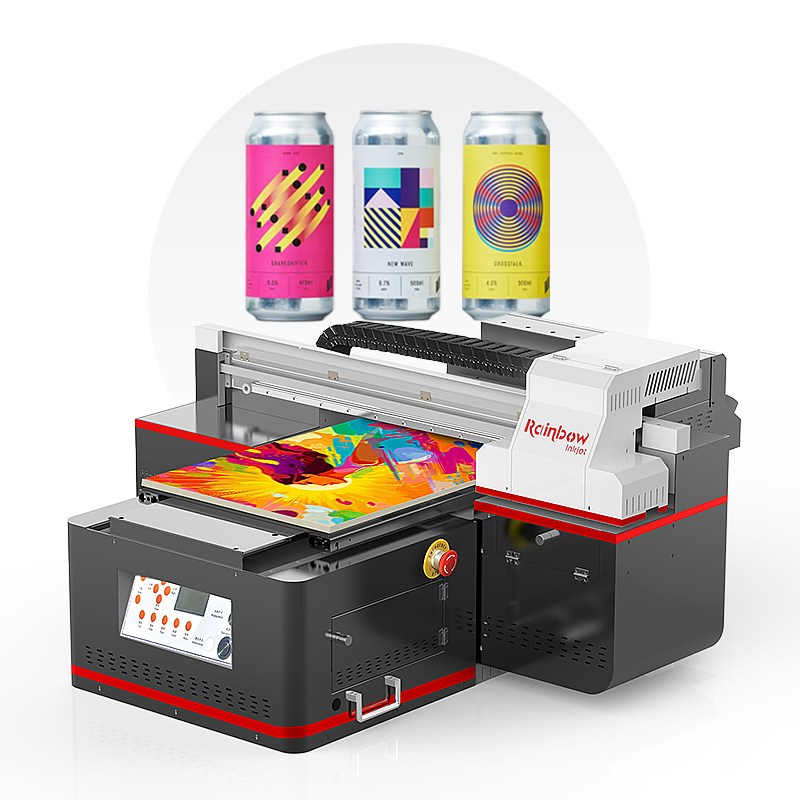

RB-4060 Plus A2 UV Flatbed Printer Machine
Square linear guideways
Rainbow RB-4060 Plus new update A2 UV printer uses Hi-win 3.5 cm straight square rail on the x-axis which is very silent and firm. Besides, it uses 2 pieces of 4 cm Hi-win straight square rail on Y-axis which makes printing smoother and the machine lifespan longer. On Z-axis, 4 pieces 4cm Hi-win straight square rail and 2 pieces screw guide makes sure the up-and-down movement has good load bearing after years using.
Magnetic windows for inspection
Rainbow RB-4060 Plus new version A2 UV printer take seriously about user friendly, it has 4 openable windows at the cap station, ink pump, main board, and motors for troubleshooting, and problem judgment without opening the complete machine cover---an important part when we consider a machine because maintenance in future is important.
6 Colors+White and Varnish
Rainbow RB-4060 Plus new version A2 UV printer has a vibrant color performance. With CMYKLcLm 6 colors, it's especially good at printing pictures with great color transition like human skin and animal fur. RB-4060 Plus uses the second printhead for white and varnish to balance the print speed and the versertility. Two heads means better speed, varnish means more possibility in creating your works.
Water cooling+air cooling
Rainbow RB-4060 Plus new version A2 UV printer equips with water circulation system for cooling the UV LED lamp, and makes sure that the printer runs in a stable temperature, thus guarantee the stability of print quality. Air fans are also equipped to stablize the motherboard.
Rotary/flatbed switch+ printhead heating
Rainbow RB-4060 Plus new version A2 UV printer has integrated panel for control. Within one switch, we can turn the flatbed mode to rotary mode and print bottles and mugs. Printhead heating function is also supported to make sure the temeperature of the ink is not as low as to clog the head.
Aluminum rotary device
Rainbow RB-4060 Plus new version A2 UV printer is built for high-quality flatbed printing, but with the help of this rotary device, it can print mugs and bottles as well. The aluminum texture makes sure of stability and a long lifespan, and the independent motor drive allows for high resolution printing, much better than using the rubbing force between the platform and the rotator.
Grating film protector sheets
Rainbow RB-4060 Plus new version A2 UV printer has a U-shaped metal sheet on the carriage to prevent the ink spray from contaminating the encoder film, damaging the precision.
Optional items
UV curing hard ink(soft ink available)
UV DTF B film(one set come with A film)
Pen printing tray
Coating brush
Cleaner
Laminating machine
Golfball printing tray
Coatings(metal, acrylic, PP, glass, ceramic)
Gloss(varnish)
Print head TX800(I3200 optional)
Phone case printing tray
Spare parts package
Packging and Shipping
Package info
The machine would be packed in a solid wooden crate for international shipping, suitable for sea, air, and express transportation.
Machine size: 97*101*56cm; Machine weight: 90kg
Package size: 118*116*76cm; package weight: 135KG
Shipping options
Shipping by sea
- To port: cost the least, available in nearly all countries and areas, usually take 1 month to arrive.
- Door-to-door: economical overall, available in the US, EU, and south-east Asia, usually takes 45 days to arrive for the EU and the US, and 15 days for south-east Asia. In this way, all costs are covered including tax, customs, etc.
Shipping by air
- To port: available in nearly all countries, usually take 7 workdays to arrive.
Shipping by Express
- Door-to-door: available in nearly all countries and areas, and takes 5-7 days to arrive.
Sample Service
We offer a sample printing service, meaning we can print a sample for you, record a video in which you can see the whole printing process, and capture high-resolution images to showcase the sample details, and will be done in 1-2 workdays. If this interests you, please submit an inquiry, and if possible, provide the following information:
- Design(s): Feel free to send us your own designs or allow us to utilize our in-house designs.
- Material(s): You may send the item you wish to have printed or inform us of the desired product for printing.
- Printing specifications (optional): If you have unique printing requirements or seek a particular printing result, don't hesitate to share your preferences. In this instance, it's advisable to provide your own design for improved clarity regarding your expectations.
Note: If you require the sample to be mailed, you will be responsible for postage fees. However, if you purchase one of our printers, the postage cost will be deducted from the final amount, effectively granting free postage.
FAQ:
Q1:What materials can UV printer print?
A:UV printer can print almost all kinds materials, such as phone case, leather, wood,plastic, acrylic, pen, golf ball, metal, ceramic, glass, textile and fabrics etc.
Q2:Can UV printer print embossing 3D effect?
A:Yes, it can print embossing 3D effect, contact us for more information and printing videos
Q3:Can A3 uv flatbed printer do rotary bottle and mug printing?
A:Yes, both bottle and mug with handle can be printed with the help of rotary printing device.
Q4:Does printing materials must be sprayed a pre-coating?
A:Some material need pre-coating, such as metal, glass, acrylic for make the color anti-scratch.
Q5:How can we start to use the printer?
A:We will send the detailed manual and teaching videos with the package of the printer before use the machine, please read the manual and watch the teaching video and operate strictly as the instructions, and if any question unclarified, our technical support online by teamviewer and video call will be help.
Q6:What about the warranty?
A:We have 13 months warranty and lifelong technical support, not include consumables like print head and ink
dampers.
Q7:What's the printing cost?
A:Usually,1 square meter need cost about $1 printing cost with our good quality ink.
Q8:Where can I buy the spare parts and inks?
A:All spare parts and ink will be available from us during the whole lifespan of printer, or you can buy at local.
Q9:What about maintenance of the printer?
A:The printer has auto-cleaning and auto keep wet system, each time before power off machine, please do a normal cleaning so that keep print head wet. If you don't use the printer more than 1 week, it’s better to power on machine 3 days later to do a test and auto clean.
| Name | RB-4060 Plus | RB-4030 Pro | |
| Printhead | Dual Epson DX8/4720 | single/Dual Epson DX8 | |
| Resolution | 720*720dpi~720*2880dpi | ||
| Ink | Type | UV curable hard/soft ink | |
| Package size | 500ml per bottle | ||
| Ink supply system | CISS(500ml ink tank) | ||
| Consumption | 9-15ml/sqm | ||
| Ink stirring system | Available | ||
| Maximum printable area(W*D*H) | Horizontal | 40*60cm(16*24inch;A2) | 40*30cm(16*12inch;A3) |
| Vertical | substrate 15cm(6inches) /rotary 8cm(3inches) | ||
| Media | Type | photographic paper, film, cloth, plastic, pvc, acrylic, glass, ceramic, metal, wood, leather, etc. | |
| Weight | ≤15kg | ||
| Media (object) holding method | Glass Table(standard)/Vacuum table(optional) | ||
| Software | RIP | RIIN | |
| Control | Better Printer | ||
| format | .tif/.jpg/.bmp/.gif/.tga/.psd/.psb/.ps/.eps/.pdf/.dcs/.ai/.eps/.svg | ||
| System | Windows XP/Win7/Win8/win10 | ||
| Interface | USB 3.0 | ||
| Language | English/Chinese | ||
| Power | requirement | 50/60HZ 220V(±10%) ＜5A | |
| Consumption | 800W | 500W | |
| Dimension | Assembled | 97*101*56cm | 63*101*56CM |
| Package size | 118*116*76cm | 120*80*88CM | |
