Nano 9x 9060 UV Printer
Nano 9x Plus A1 is an industrial level uv flatbed printer for bulk production. which is our newest upgrade one, with 4/6/8 print heads, it can print on substrates and rotary materials with all color, CMYKW, White and Varnish by one pass.
This A1 uv printer max printing size is 90*60cm and with four Epson TX800 heads or six Ricoh GH220 heads. It can print on various items and wide applications, with absortption vaccum table for both hard and soft materials.
such as phone case, metal, wood, acrylic, glass, pvc board, rotary bottles, mugs, USB, CD, bank card, plastic etc.
|
Specs of Rainbow Nano 9x UV flatbed printer |
|||
| Name | Rainbow Nano 9x A1+ 9060 digital uv printer | Working Environment | 10 ~ 35 ℃ HR40-60% |
| Machine Type | Automatic Flatbed UV digital printer | Printer Head | Four Printer Heads |
| Features | · The UV light source can be adjusted | RIP Software | Maintop 6.0 or PhotoPrint DX 12 |
| · Auto height measurement | Operation System | All Microsoft Windows system | |
| . Power auto flash clean | Interface | USB2.0/3.0 Port | |
| ·Print on most material directly | Languages | English/Chinese | |
| · Ideal for industrial bulk production with high printing speed | Ink Type | UV LED curing ink | |
| · Finished products is Water proof, UV proof, and Scratch proof | Ink System | CISS Built Inside With Ink Bottle | |
| · Finished product is suitable for outdoor use | Ink Supply | 500ml/Bottle | |
| · Max printing Size: 90*60cm | Height Adjustment | Automatic with Sensor. | |
| · With movable angel and frame | Driving Power | 110 V/ 220 V. | |
| · The printing machine can print white color and 3D emboss effect | Power Consumption | 1500W | |
| Materials to Print | · Metal, Plastic, glass, wood,Acrylic, Ceramics,PVC,Steel board,Paper, | Media Feeding System | Auto/Manual |
| ·TPU, Leather, Canvas, etc | Ink Consumption | 9-15ml/SQM. | |
| UV Curing System | Water Cooling | Print Quality | 720×720dpi/720*1080DPI（6/8/12/16pass） |
| Printing Method | Drop-on-demand Piezo Electric Inkjet | Machine Dimension | 218*118*138CM |
| Printing Direction | Smart Bi-directional Printing Mode | Packing Size | 220*125*142cm |
| Printing Speed | About 8 minutes for 720*720dpi, 900mm*600mm size | Machine Net Weight | 200kg |
| Max. Print Gap | 0—60cm | Gross.Weight | 260kg |
| Power Requirement | 50/60HZ 220V(±10%)<5A | Packing Way | Wooden Case |
1.The A1 UV printer Max printing size is 90*60cm. It uses a powerful absorption table which is good for both hard & soft material printing. with a ruler to locate the position precisely.
2.The A1 9060 UV flatbed printer equipped with max 4 pieces DX8 print heads, Or 6/8 pcs Ricoh GH220 heads, can print all colors(CMYKW) and vanish effect with quick speed and high resolution..
3.The A1 UV machine with Max 60cm printing height which helps printing on thick products like suitcases conveniently.
4.This large format UV printing machine has negative press system for easy maintenance and one button cleaning solution, it saves printer from ink sucking from ink tank.

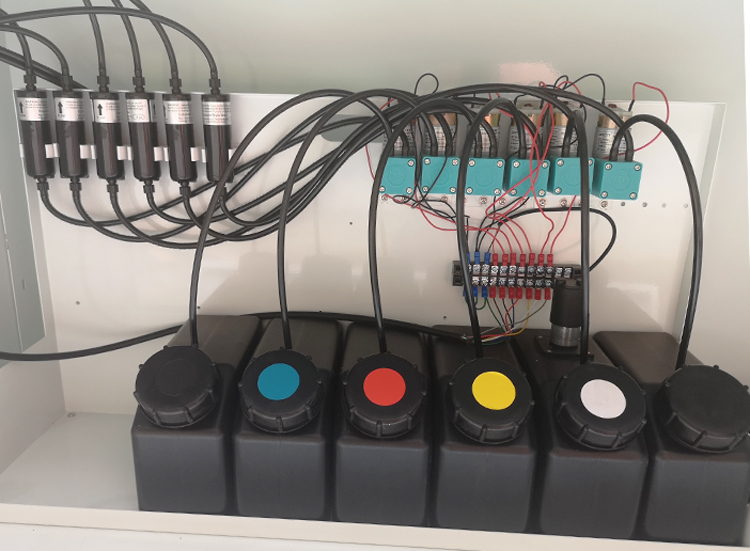

All ink tank equipped with ink stir system.
5.This A1+UV make sure 360 degree rotary bottles printing + mug with handle printing, equipped with two kinds of rotary devices for any bottles printing, the diameter from 1cm to 12cm, all tiny cylinder are available..
Q1:What materials can UV printer print?
A:UV printer can print almost all kinds materials, such as phone case, leather, wood,plastic, acrylic, pen, golf ball, metal, ceramic, glass, textile and fabrics etc.
Q2:Can UV printer print embossing 3D effect?
A:Yes, it can print embossing 3D effect, contact us for more information and printing videos
Q3:Can A3 uv flatbed printer do rotary bottle and mug printing?
A:Yes, both bottle and mug with handle can be printed with the help of rotary printing device.
Q4:Does printing materials must be sprayed a pre-coating?
A:Some material need pre-coating, such as metal, glass, acrylic for make the color anti-scratch.
Q5:How can we start to use the printer?
A:We will send the detailed manual and teaching videos with the package of the printer before use the machine, please read the manual and watch the teaching video and operate strictly as the instructions, and if any question unclarified, our technical support online by teamviewer and video call will be help.
Q6:What about the warranty?
A:We have 13 months warranty and lifelong technical support, not include consumables like print head and ink
dampers.
Q7:What's the printing cost?
A:Usually,1 square meter need cost about $1 printing cost with our good quality ink.
Q8:Where can I buy the spare parts and inks?
A:All spare parts and ink will be available from us during the whole lifespan of printer, or you can buy at local.
Q9:What about maintenance of the printer?
A:The printer has auto-cleaning and auto keep wet system, each time before power off machine, please do a normal cleaning so that keep print head wet. If you don't use the printer more than 1 week, it’s better to power on machine 3 days later to do a test and auto clean.
| Name | Nano 9X | ||
| Printhead | 4pcs Epson DX8/6-8pcs GH2220 | ||
| Resolution | 720dpi-2440dpi | ||
| Ink | Type | UV LED Curable Ink | |
| Package size | 500ml per bottle | ||
| Ink supply system | CISS Built Inside Withi Ink Bottle |
||
| Consumption | 9-15ml/sqm | ||
| Ink stirring system | Available | ||
| Maximum printable area(W*D*H) | Horizontal | 90*60cm(37.5*26inch;A1) | |
| Vertical | substrate 60cm(25inches) /rotary 12cm(5inches) | ||
| Media | Type | Metal, Plastic, Glass, Wood, Acrylic, Ceramics, PVC, Paper, TPU, Leather, Canvas, etc. |
|
| Weight | ≤100kg | ||
| Media (object) holding method | Glass Table(standard)/Vacuum table(optional) | ||
| Software | RIP | Maintop6.0/ Photoprint/Ultraprint |
|
| Control | Wellprint | ||
| format | TIFF(RGB&CMYK)/BMP/ PDF/EPS/JPEG… |
||
| System | Windows XP/Win7/Win8/win10 | ||
| Interface | USB 3.0 | ||
| Language | Chinese/English | ||
| Power | requirement | 50/60HZ 220V(±10%) ＜5A | |
| Consumption | 500W | ||
| Dimension | Assembled | 218*118*138cm | |
| Operational | 220*125*145cm | ||
| Weight | 200KG/260KG | ||
